Our Products
We Offer a Range of ProductsÂ
Explore a wide range of modular woodworking machinery designed to meet the needs of modern workshops and manufacturing units. From cutting, edge banding, and panel processing to advanced automation solutions, our machines are built for precision, durability, and consistent performance.

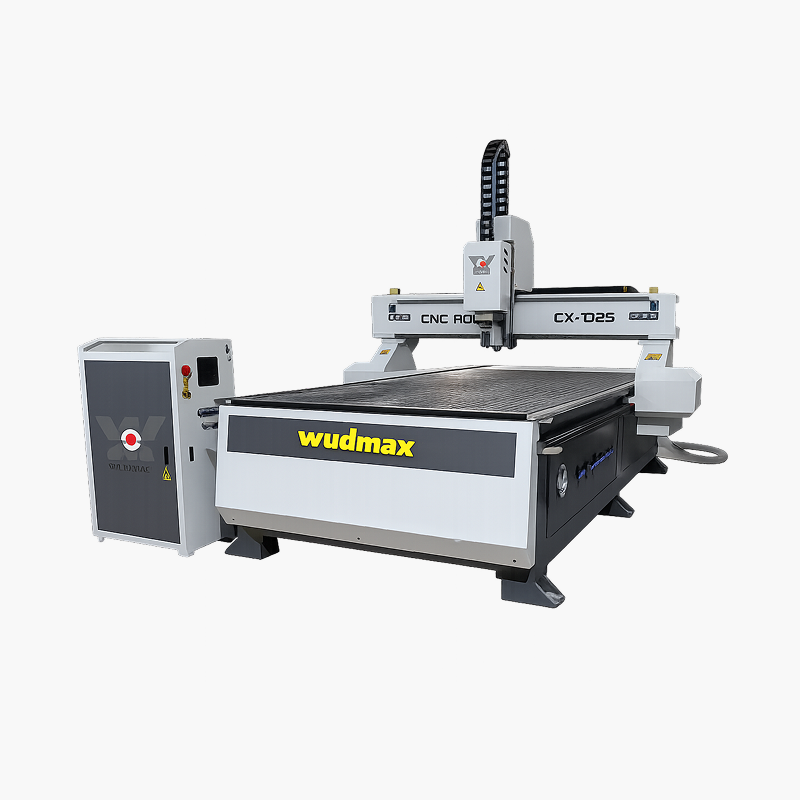

CNC Router Machine (Easy Servo Hybrid)
Model no : 1325 Wood Router with 6kw Spindle
The CNC Router Machine (Easy Servo Hybrid) is designed for precision cutting, carving, and panel processing in modern woodworking applications. Built with a robust structure and advanced Easy Servo Hybrid system, it delivers smooth performance, high accuracy, and reliable operation for continuous production environments.
Specification
Working Area
Guide Rail
Spindle Speed
Drive & Motor
Work Voltage
Transmission System
Tool Kit
Working Table
Control System
Spindle
Detail
1300 x 2500 x 300mm
25mm Hiwin Linear Square Guide Rails Taiwan
0-18000
Easy Servo Hybrid
Ac380 Volt, 50/60Hz, 3 Phase or SPH
 X, Y Axis: Helical Rack AND Pinion Z Axis: TBI Ball Screw
Spanner Collet, One Box Of Cutting
Aluminium Profile Working Table T-slot
DSP A11 Rich AUTO
6kw (Air Cooled HQD Spindle)
Model no : 1325 Wood Router with 6kw Spindle
CNC Router Machine (Easy Servo Hybrid)
Model no : 1530 Wood Router with 6kw Spindle
The CNC Router Machine (Easy Servo Hybrid) is designed for precision cutting, carving, and panel processing in modern woodworking applications. Built with a robust structure and advanced Easy Servo Hybrid system, it delivers smooth performance, high accuracy, and reliable operation for continuous production environments.
Specification
Working Area
Guide Rail
Spindle Speed
Drive & Motor
Work Voltage
Transmission System
Tool Kit
Working Table
Control System
Spindle
Detail
1500 x 3000 x 300 mm
25mm Hiwin Linear Square Guide Rails Taiwan
0-18000
Easy Servo Hybrid
Ac380 Volt, 50/60Hz, 3 Phase or SPH
 X, Y Axis: Helical Rack AND Pinion Z Axis: TBI Ball Screw
Spanner Collet, One Box Of Cutting
Aluminium Profile Working Table T-slot
DSP A11 Rich AUTO
6kw (Air Cooled HQD Spindle)
Model no : 1530 Wood Router with 6kw Spindle
CNC Router Machine (Easy Servo Hybrid) - Double Spindle 6 kw
Model no : 1325 Wood Router with 6kw Spindle
The CNC Router Machine (Easy Servo Hybrid) is designed for precision cutting, carving, and panel processing in modern woodworking applications. Built with a robust structure and advanced Easy Servo Hybrid system, it delivers smooth performance, high accuracy, and reliable operation for continuous production environments.
Specification
Working Area
Guide Rail
Spindle Speed
Drive & Motor
Work Voltage
Transmission System
Tool Kit
Working Table
Control System
Spindle
Detail
1300 x 2500 x 300mm
25mm Hiwin Linear Square Guide Rails Taiwan
0-18000
Ac380 Volt, 50/60Hz, 3 Phase or SPH
Easy Servo Hybrid
 X, Y Axis: Helical Rack AND Pinion Z Axis: TBI Ball Screw
Spanner Collet, One Box Of Cutting
Aluminium Profile Working Table T-slot
DSP A11 Rich AUTO
Double Spindle 6kw (Air Cooled HQD Spindle)
Model no : 1325 Wood Router with 6kw Spindle
Specification
Detail
1300 x 2500 x 300mm
Working Area
Spindle Speed
0-18000
25mm Hiwin Linear Square Guide Rails Taiwan
Guide Rail
Ac380 Volt, 50/60Hz, 3 Phase or SPH
Work Voltage
Easy Servo Hybrid
Drive & Motor
Working Table
Aluminium Profile Working Table T-slot
Spanner Collet, One Box Of Cutting
Tool Kit
 X, Y Axis: Helical Rack AND Pinion Z Axis: TBI Ball Screw
Transmission System
Spindle
Double Spindle 6kw (Air Cooled HQD Spindle)
DSP A11 Rich AUTO
CNC Router Machine with Rotary (Easy Servo Hybrid)
Model no : 1325 Wood Router with 6kw Spindle
The CNC Router Machine with Rotary (Easy Servo Hybrid) is engineered to handle detailed woodworking operations with speed, stability, and precision. The machine supports efficient cutting, engraving, and shaping across a wide range of materials. Its smooth transmission system and high-speed spindle make it ideal for workshops and production units requiring consistent output and dependable performance.
Specification
Working Area
Guide Rail
Spindle Speed
Drive & Motor
Work Voltage
Transmission System
Tool Kit
Working Table
Control System
Spindle
Detail
1300 × 2500 × 300 mm
25mm Hiwin Linear Square Guide Rails Taiwan
0-18000
Easy Servo Hybrid
AC380 Volt, 50/60Hz, 3 Phase or SPH
X, Y Axis: Helical Rack and Pinion Z Axis: TBI Ball Screw
Spanner Collet, One Box Of Cutting
Aluminium Profile Working Table T-slot
DSP A11 Rich AUTO
6kw (Air Cooled HQD Spindle)
Control System
Specification
Detail
1300 x 2500 x 300mm
Working Area
Spindle Speed
0-18000
25mm Hiwin Linear Square Guide Rails Taiwan
Guide Rail
Ac380 Volt, 50/60Hz, 3 Phase or SPH
Work Voltage
Easy Servo Hybrid
Drive & Motor
Working Table
Aluminium Profile Working Table T-slot
Spanner Collet, One Box Of Cutting
Tool Kit
 X, Y Axis: Helical Rack AND Pinion Z Axis: TBI Ball Screw
Transmission System
Spindle
Double Spindle 6kw (Air Cooled HQD Spindle)
DSP A11 Rich AUTO
Control System
Sliding Table Panel Saw MachineÂ
Model no : Nova 32
The Sliding Table Panel Saw designed for precise and efficient panel cutting in woodworking and furniture manufacturing applications. Equipped with a powerful main saw motor, precision scoring unit, and smooth sliding table mechanism, the machine delivers accurate, clean cuts with excellent stability. Its adjustable cutting capabilities, and user-friendly controls make it ideal for handling large panels and achieving consistent, high-quality results in both workshops and high-production environments.
Specification
Main Saw Motor
Scoring Saw Motor
Saw Unit Adjustment
Tilt Capacity
Maximum Cutting Depth (90°)
Maximum Scoring Saw Diameter
Machine Dimensions
Approximate Net Weight
Detail
7.5 HP, 3 Phase
1.5 HP, 3 Phase
Manual lifting and tilting from the front panel for easy operation
Digital 45° tilt
102 mm
120 mm
3400 × 3710 × 1300 mm
850 kg
Specification
Specification
Detail
1300 x 2500 x 300mm
Working Area
Spindle Speed
0-18000
25mm Hiwin Linear Square Guide Rails Taiwan
Guide Rail
Ac380 Volt, 50/60Hz, 3 Phase or SPH
Work Voltage
Easy Servo Hybrid
Drive & Motor
Working Table
Aluminium Profile Working Table T-slot
Spanner Collet, One Box Of Cutting
Tool Kit
 X, Y Axis: Helical Rack AND Pinion Z Axis: TBI Ball Screw
Transmission System
Spindle
Double Spindle 6kw (Air Cooled HQD Spindle)
DSP A11 Rich AUTO
Control System
Specification
Specification
Detail
Main Saw Motor
4 HP Single Phase
1.5 HP
Scoring Saw Motor
Manual lifting and tilting from the front panel for easy operation
Saw Unit Adjustment
Digital 45° tilt
Tilt Capacity
550 kg
Approximate Net Weight
1600 × 375 mm
Sliding Table Dimension
120 mm
Maximum Scoring Saw Diameter
102 mm
Maximum Cutting Depth (90°)
Machine Dimensions
1650 × 2550 × 900 mm
Spindle Diameter
Mini Panel Saw MachineÂ
Model no : WMPS5
The Mini Panel Saw is designed for precise cutting of plywood, MDF, particle board, laminates, and other sheet materials used in furniture manufacturing. It is ideal for producing cabinets, wardrobes, modular kitchens, office furniture, and custom interior components with clean, accurate cuts, making it a valuable addition to workshops and woodworking facilities.
Specification
Main Motor
Scoring Saw Motor
Saw Unit Adjustment
Tilt Capacity
Maximum Cutting Depth (90°)
Maximum Scoring Saw Diameter
Sliding Table Dimension
Machine Dimensions
Approximate Net Weight
Spindle Diameter
Detail
4 HP Single Phase
1.5 HP
Manual lifting and tilting from the front panel for easy operation
Digital 45° tilt
102 mm
120 mm
1600 × 375 mm
30 mm
1650 × 2550 × 900 mm
550 kg
30 mm
Specification
Detail
1300 x 2500 x 300mm
Working Area
Spindle Speed
0-18000
25mm Hiwin Linear Square Guide Rails Taiwan
Guide Rail
Ac380 Volt, 50/60Hz, 3 Phase or SPH
Work Voltage
Easy Servo Hybrid
Drive & Motor
Working Table
Aluminium Profile Working Table T-slot
Spanner Collet, One Box Of Cutting
Tool Kit
 X, Y Axis: Helical Rack AND Pinion Z Axis: TBI Ball Screw
Transmission System
Spindle
Double Spindle 6kw (Air Cooled HQD Spindle)
DSP A11 Rich AUTO
Control System
Specification
Specification
Max. Distance of 2 horizontal boring position
2450 mm
Max. Width of work Piece
640 mm
Min. Distance of Vertical Drilling Group
128 mm
Maximum thickness of work piece
78 mm
Max. Depth of horizontal boring head
40 mm
Rotation Speed of boring spindles
2800rpm (50Hz)
Max. Depth of vertical boring head
70 mm
1.5kw × 2
Vertical boring power
Horizontal boring power
1.5kw
Working pressure
Machine dimension
1.5kw
0.6~0.8Mpa
3400 × 2500 × 1800 mm
Triple Head Multiboring
Model no : WZ3
The Triple Head Multiboring Machine is a woodworking solution designed for fast, precise, and efficient multi-directional drilling operations. Equipped with three independent boring heads, it enables simultaneous horizontal and vertical drilling, significantly improving productivity. Its robust construction, adjustable drilling positions, and user-friendly controls make it ideal for manufacturing cabinets, wardrobes, modular furniture, and other panel-based products.Â
Specification
Max. Width of work Piece
Max. Distance of 2 horizontal boring position
Min. Distance of Vertical Drilling Group
Maximum thickness of work piece
Max. Depth of horizontal boring head
Max. Depth of vertical boring head
Rotation Speed of boring spindles
Vertical boring power
Horizontal boring power
Working pressure
Machine dimension
Detail
2450 mm
640 mm
128 mm
40 mm
70 mm
2800rpm (50Hz)
1.5kw × 2
1.5kw
0.6~0.8Mpa
3400 × 2500 × 1800 mm
78 mm
Detail
Specification
Detail
1300 x 2500 x 300mm
Working Area
Spindle Speed
0-18000
25mm Hiwin Linear Square Guide Rails Taiwan
Guide Rail
Ac380 Volt, 50/60Hz, 3 Phase or SPH
Work Voltage
Easy Servo Hybrid
Drive & Motor
Working Table
Aluminium Profile Working Table T-slot
Spanner Collet, One Box Of Cutting
Tool Kit
 X, Y Axis: Helical Rack AND Pinion Z Axis: TBI Ball Screw
Transmission System
Spindle
Double Spindle 6kw (Air Cooled HQD Spindle)
DSP A11 Rich AUTO
Control System
Specification
Specification
Max. Distance of 2 horizontal boring position
2450 mm
Max. Width of work Piece
640 mm
Min. Distance of Vertical Drilling Group
128 mm
Maximum thickness of work piece
78 mm
Max. Depth of horizontal boring head
40 mm
Rotation Speed of boring spindles
2800rpm (50Hz)
Max. Depth of vertical boring head
70 mm
1.5kw × 2
Vertical boring power
Horizontal boring power
1.5kw
Working pressure
Machine dimension
1.5kw
0.6~0.8Mpa
3400 × 2500 × 1800 mm
Detail
Specification
Max. Distance of 2 horizontal boring position
1570 mm
Max. Width of work Piece
640 mm
Min. Distance of Vertical Drilling Group
128 mm
Maximum thickness of work piece
 55 mm
Rotation Speed of boring spindles
2800rpm (50Hz)
1.5kwÂ
Vertical boring power
Horizontal boring power
Working pressure
Machine dimension
1.5kw
Double Head Multiboring
Model no : WZ2
The Double Head Multiboring is a precision multi-boring machine designed for efficient drilling and boring operations in furniture manufacturing, cabinet production, and modular woodworking. It enables accurate horizontal and vertical drilling, ensuring consistent hole placement for panel assembly and hardware installation. Built for reliability and high productivity, the machine delivers smooth, repeatable performance while reducing manual effort and improving production efficiency.
Specification
Max. Width of work Piece
Max. Distance of 2 horizontal boring position
0.6~0.8Mpa
Min. Distance of Vertical Drilling Group
Maximum thickness of work piece
Rotation Speed of boring spindles
Vertical boring power
Horizontal boring power
Working pressure
Machine dimension
Detail
1570 mm
3400 × 2500 × 1800 mm
640 mm
128 mm
2800rpm (50Hz)
1.5kwÂ
1.5kw
0.6~0.8Mpa
3400 × 2500 × 1800 mm
55 mm
Detail
Specification
Detail
1300 x 2500 x 300mm
Working Area
Spindle Speed
0-18000
25mm Hiwin Linear Square Guide Rails Taiwan
Guide Rail
Ac380 Volt, 50/60Hz, 3 Phase or SPH
Work Voltage
Easy Servo Hybrid
Drive & Motor
Working Table
Aluminium Profile Working Table T-slot
Spanner Collet, One Box Of Cutting
Tool Kit
 X, Y Axis: Helical Rack AND Pinion Z Axis: TBI Ball Screw
Transmission System
Spindle
Double Spindle 6kw (Air Cooled HQD Spindle)
DSP A11 Rich AUTO
Control System
Specification
Specification
Max. Distance of 2 horizontal boring position
2450 mm
Max. Width of work Piece
640 mm
Min. Distance of Vertical Drilling Group
128 mm
Maximum thickness of work piece
78 mm
Max. Depth of horizontal boring head
40 mm
Rotation Speed of boring spindles
2800rpm (50Hz)
Max. Depth of vertical boring head
70 mm
1.5kw × 2
Vertical boring power
Horizontal boring power
1.5kw
Working pressure
Machine dimension
1.5kw
0.6~0.8Mpa
3400 × 2500 × 1800 mm
4
No. of Cylinders
1000 mm
Max Opening
2500 × 1300 mm
Platen Size
100 Ton
Capacity
Specification
Detail
Cold Press- 100 Ton
5 HP
Model no : WCP-100
The Cold Press is designed for applying uniform pressure during the bonding and laminating process of wood-based panels, veneers, laminates, and composite materials. It is widely used in furniture manufacturing, plywood production, door fabrication, modular kitchen units, and interior woodworking to ensure strong adhesion, smooth finishes, and durable panel construction. Ideal for both small workshops and large-scale production facilities.
Specification
Capacity
Platen Size
Max Opening
No. of Cylinders
Motor Power
Detail
100 Ton
2500 × 1300 mm
1000 mm
4
5 HP
Motor Power
Specification
Detail
1300 x 2500 x 300mm
Working Area
Spindle Speed
0-18000
25mm Hiwin Linear Square Guide Rails Taiwan
Guide Rail
Ac380 Volt, 50/60Hz, 3 Phase or SPH
Work Voltage
Easy Servo Hybrid
Drive & Motor
Working Table
Aluminium Profile Working Table T-slot
Spanner Collet, One Box Of Cutting
Tool Kit
 X, Y Axis: Helical Rack AND Pinion Z Axis: TBI Ball Screw
Transmission System
Spindle
Double Spindle 6kw (Air Cooled HQD Spindle)
DSP A11 Rich AUTO
Control System
Specification
Specification
Max. Distance of 2 horizontal boring position
2450 mm
Max. Width of work Piece
640 mm
Min. Distance of Vertical Drilling Group
128 mm
Maximum thickness of work piece
78 mm
Max. Depth of horizontal boring head
40 mm
Rotation Speed of boring spindles
2800rpm (50Hz)
Max. Depth of vertical boring head
70 mm
1.5kw × 2
Vertical boring power
Horizontal boring power
1.5kw
Working pressure
Machine dimension
1.5kw
0.6~0.8Mpa
3400 × 2500 × 1800 mm
2
No. of Cylinders
1000 mm
Max Opening
2500 × 1300 mm
Platen Size
50 Ton
Capacity
Specification
Detail
Cold Press- 50 Ton
Model no : WCP-50
The 50 Ton Cold Press is designed for efficient bonding and laminating of veneers, laminates, plywood, MDF, particle boards, and other engineered wood panels. It is widely used in furniture manufacturing, cabinet production, door fabrication, modular kitchen manufacturing, and interior woodworking to create strong, durable bonds with a smooth, high-quality finish. Ideal for workshops and medium-scale production facilities.
Specification
Capacity
5 HP
Platen Size
Max Opening
No. of Cylinders
Motor Power
Detail
50 Ton
2500 × 1300 mm
1000 mm
2
5 HP
Motor Power
Specification
Detail
1300 x 2500 x 300mm
Working Area
Spindle Speed
0-18000
25mm Hiwin Linear Square Guide Rails Taiwan
Guide Rail
Ac380 Volt, 50/60Hz, 3 Phase or SPH
Work Voltage
Easy Servo Hybrid
Drive & Motor
Working Table
Aluminium Profile Working Table T-slot
Spanner Collet, One Box Of Cutting
Tool Kit
 X, Y Axis: Helical Rack AND Pinion Z Axis: TBI Ball Screw
Transmission System
Spindle
Double Spindle 6kw (Air Cooled HQD Spindle)
DSP A11 Rich AUTO
Control System
Specification
Specification
Max. Distance of 2 horizontal boring position
2450 mm
Max. Width of work Piece
640 mm
Min. Distance of Vertical Drilling Group
128 mm
Maximum thickness of work piece
78 mm
Max. Depth of horizontal boring head
40 mm
Rotation Speed of boring spindles
2800rpm (50Hz)
Max. Depth of vertical boring head
70 mm
1.5kw × 2
Vertical boring power
Horizontal boring power
1.5kw
Working pressure
Machine dimension
1.5kw
0.6~0.8Mpa
3400 × 2500 × 1800 mm
2
No. of Cylinders
1000 mm
Max Opening
2500 × 1300 mm
Platen Size
50 Ton
Capacity
Specification
Detail
5 HP
Motor Power
Maximum Thickness of Work Place
Edge (Tape) Thickness
Glue Pot Capacity
Heating Element
Mechanism for Tape Cutting
Control of Tape Cutting
Glue can be applied to
Working speed per minute
Detail
10 mm to 50 mm
0.3 mm to 3 mm
3 Kg. Approx.
3 KW
Pneumatic
Micro Switch on Table / Foot Switch
Tape & Board
8 to 10 meters per minute
Specification
Machine dimensions (L×W×H)
Motor Power
Tape Coil Diameter
Air Pressure
1850 to 1150 × 1000 mm
1 H.P.
Manual Edge BandingÂ
Model no : WMB2
The Manual Edge Bander is a compact and efficient edge banding machine designed for applying PVC, ABS, veneer, melamine, and other edge tapes to wooden panels. Featuring a heated glue pot and pneumatic tape cutting mechanism, it delivers strong, consistent bonding with precise finishing. Ideal for furniture manufacturers, modular kitchen workshops, and carpentry businesses.
Specification
Maximum Thickness of Work Place
Edge (Tape) Thickness
Glue Pot Capacity
Heating Element
Mechanism for Tape Cutting
Control of Tape Cutting
Glue can be applied to
Working speed per minute
Machine dimensions (L×W×H)
525 mm
Motor Power
Tape Coil Diameter
Air Pressure
Detail
10 mm to 50 mm
0.3 mm to 3 mm
3 Kg. Approx.
3 KW
Pneumatic
Micro Switch on Table / Foot Switch
Tape & Board
8 to 10 meters per minute
1850 to 1150 × 1000 mm
1 H.P.
525 mm
5 to 7 BAR
8 to 10 meters per minute
Specification
Detail
1300 x 2500 x 300mm
Working Area
Spindle Speed
0-18000
25mm Hiwin Linear Square Guide Rails Taiwan
Guide Rail
Ac380 Volt, 50/60Hz, 3 Phase or SPH
Work Voltage
Easy Servo Hybrid
Drive & Motor
Working Table
Aluminium Profile Working Table T-slot
Spanner Collet, One Box Of Cutting
Tool Kit
 X, Y Axis: Helical Rack AND Pinion Z Axis: TBI Ball Screw
Transmission System
Spindle
Double Spindle 6kw (Air Cooled HQD Spindle)
DSP A11 Rich AUTO
Control System
Specification
Specification
Max. Distance of 2 horizontal boring position
2450 mm
Max. Width of work Piece
640 mm
Min. Distance of Vertical Drilling Group
128 mm
Maximum thickness of work piece
78 mm
Max. Depth of horizontal boring head
40 mm
Rotation Speed of boring spindles
2800rpm (50Hz)
Max. Depth of vertical boring head
70 mm
1.5kw × 2
Vertical boring power
Horizontal boring power
1.5kw
Working pressure
Machine dimension
1.5kw
0.6~0.8Mpa
3400 × 2500 × 1800 mm
2
No. of Cylinders
1000 mm
Max Opening
2500 × 1300 mm
Platen Size
50 Ton
Capacity
Specification
Detail
5 HP
Motor Power
Maximum Thickness of Work Place
Edge (Tape) Thickness
Glue Pot Capacity
Heating Element
Mechanism for Tape Cutting
Control of Tape Cutting
Glue can be applied to
Working speed per minute
Detail
10 mm to 50 mm
0.3 mm to 3 mm
3 Kg. Approx.
3 KW
Pneumatic
Micro Switch on Table / Foot Switch
Tape & Board
8 to 10 meters per minute
Specification
Machine dimensions (L×W×H)
Motor Power
Tape Coil Diameter
Air Pressure
1850 to 1150 × 1000 mm
1 H.P.
525 mm
Automatic Through Feed
Model no : WMATF
8 to 10 meters per minute
The Automatic Through Feed Edge Banding Machine is a high-performance solution designed for continuous, high-speed edge banding of wooden panels. It automatically feeds the workpiece through multiple processing stations, including gluing, edge tape application, end trimming, fine trimming, scraping, buffing, and polishing, delivering a seamless and professional finish.Â
Edge Thickness
Specification
Panel Thickness
Edge Thickness
Minimum Panel Width
Panel Thickness
Minimum Panel Length
Minimum Panel Width
Feeding Speed
Minimum Panel Length
Working Pressure
Feeding Speed
Power
Working Pressure
Working speed per minute
Power
Detail
Detail
0.4 mm - 3 mm
0.4 mm - 3 mm
10 mm - 60 mm
10 mm - 60 mm
50 mm - 90 mm (depending on the model)
50 mm - 90 mm (depending on the model)
140 mm - 150 mm
140 mm - 150 mm
12 - 20 m/min
12 - 20 m/min
0.6 MPa to 0.7 MPa
0.6 MPa to 0.7 MPa
7.5 kW to 14.5 kW
7.5 kW to 14.5 kW
8 to 10 meters per minute
Specification
Specification
Detail
1300 x 2500 x 300mm
Working Area
Spindle Speed
0-18000
25mm Hiwin Linear Square Guide Rails Taiwan
Guide Rail
Ac380 Volt, 50/60Hz, 3 Phase or SPH
Work Voltage
Easy Servo Hybrid
Drive & Motor
Working Table
Aluminium Profile Working Table T-slot
Spanner Collet, One Box Of Cutting
Tool Kit
 X, Y Axis: Helical Rack AND Pinion Z Axis: TBI Ball Screw
Transmission System
Spindle
Double Spindle 6kw (Air Cooled HQD Spindle)
DSP A11 Rich AUTO
Control System
Specification
Specification
Max. Distance of 2 horizontal boring position
2450 mm
Max. Width of work Piece
640 mm
Min. Distance of Vertical Drilling Group
128 mm
Maximum thickness of work piece
78 mm
Max. Depth of horizontal boring head
40 mm
Rotation Speed of boring spindles
2800rpm (50Hz)
Max. Depth of vertical boring head
70 mm
1.5kw × 2
Vertical boring power
Horizontal boring power
1.5kw
Working pressure
Machine dimension
1.5kw
0.6~0.8Mpa
3400 × 2500 × 1800 mm
2
No. of Cylinders
1000 mm
Max Opening
2500 × 1300 mm
Platen Size
50 Ton
Capacity
Specification
Detail
5 HP
Motor Power
Maximum Thickness of Work Place
Edge (Tape) Thickness
Glue Pot Capacity
Heating Element
Mechanism for Tape Cutting
Control of Tape Cutting
Glue can be applied to
Working speed per minute
Detail
10 mm to 50 mm
0.3 mm to 3 mm
3 Kg. Approx.
3 KW
Pneumatic
Micro Switch on Table / Foot Switch
Tape & Board
8 to 10 meters per minute
Specification
Machine dimensions (L×W×H)
Motor Power
Tape Coil Diameter
Air Pressure
1850 to 1150 × 1000 mm
1 H.P.
525 mm
8 to 10 meters per minute
Rated Voltage
Rated Power
Machine Dimensions
Net Weight
Edge Banding Speed
Edge Band Thickness
Glue Pot Capacity
Heating Time
Detail
220 V
825 W
500 × 300 × 270 mm
15 kg
0–14 m/min
0.5–2 mm
1000 ml
Portable Edge Banding Machine
Model no : WMB3
The Portable Edge Banding Machine is a compact and portable solution designed for fast, precise edge banding on straight, curved, and irregular-shaped panels. Equipped with a double glue coating system, it ensures strong adhesion and a smooth, professional finish on PVC, ABS, veneer, melamine, and other edge tapes. Its quick heating time, adjustable banding speed, and lightweight design make it ideal for furniture manufacturers, cabinet makers, carpentry workshops, and on-site installation projects where efficiency and mobility are essential.
Specification
Rated Voltage
Rated Power
5–10 minutes
Machine Dimensions
Net Weight
Edge Banding Speed
Edge Band Thickness
Glue Pot Capacity
Heating Time
Specification
Continuous Working Time
Detail
220 V
825 W
500 × 300 × 270 mm
15 kg
≤ 10 hours
0–14 m/min
0.5–2 mm
1000 ml
5–10 minutes
≤ 10 hours
Continuous Working Time
Specification
Detail
1300 x 2500 x 300mm
Working Area
Spindle Speed
0-18000
25mm Hiwin Linear Square Guide Rails Taiwan
Guide Rail
Ac380 Volt, 50/60Hz, 3 Phase or SPH
Work Voltage
Easy Servo Hybrid
Drive & Motor
Working Table
Aluminium Profile Working Table T-slot
Spanner Collet, One Box Of Cutting
Tool Kit
 X, Y Axis: Helical Rack AND Pinion Z Axis: TBI Ball Screw
Transmission System
Spindle
Double Spindle 6kw (Air Cooled HQD Spindle)
DSP A11 Rich AUTO
Control System
Specification
Specification
Max. Distance of 2 horizontal boring position
2450 mm
Max. Width of work Piece
640 mm
Min. Distance of Vertical Drilling Group
128 mm
Maximum thickness of work piece
78 mm
Max. Depth of horizontal boring head
40 mm
Rotation Speed of boring spindles
2800rpm (50Hz)
Max. Depth of vertical boring head
70 mm
1.5kw × 2
Vertical boring power
Horizontal boring power
1.5kw
Working pressure
Machine dimension
1.5kw
0.6~0.8Mpa
3400 × 2500 × 1800 mm
2
No. of Cylinders
1000 mm
Max Opening
2500 × 1300 mm
Platen Size
50 Ton
Capacity
Specification
Detail
5 HP
Motor Power
Maximum Thickness of Work Place
Edge (Tape) Thickness
Glue Pot Capacity
Heating Element
Mechanism for Tape Cutting
Control of Tape Cutting
Glue can be applied to
Working speed per minute
Detail
10 mm to 50 mm
0.3 mm to 3 mm
3 Kg. Approx.
3 KW
Pneumatic
Micro Switch on Table / Foot Switch
Tape & Board
8 to 10 meters per minute
Specification
Machine dimensions (L×W×H)
Motor Power
Tape Coil Diameter
Air Pressure
1850 to 1150 × 1000 mm
1 H.P.
525 mm
8 to 10 meters per minute
Rated Voltage
Rated Power
Machine Dimensions
Net Weight
Edge Banding Speed
Edge Band Thickness
Glue Pot Capacity
Heating Time
Detail
220 V
825 W
500 × 300 × 270 mm
15 kg
0–14 m/min
0.5–2 mm
1000 ml
5–10 minutes
Specification
Pin Router
≤ 10 hours
Continuous Working Time
Spindle Speed
Throat Depth
Max Spindle Stroke
Max Workpiece Thickness
Working Table Size
Table Lift Stroke
Table Tilting Capacity
Collet Diameters
Detail
Up to 18,000 RPM (or dual 9,000 / 18,000 RPM)
730 mm – 745 mm
65 mm
80 mm – 150 mm
805 mm × 600 mm
150 mm – 180 mm
0° to 45° (on select models)
6.3 mm (1/4") and 12.7 mm (1/2")
Specification
3.0 kW (4 HP) or 4.0 kW (5.5 HP)
Motor Power
Voltage Input
Net Weight
Overall Dimensions
Model no : WPR
220V (Single-Phase) or 380V/415V (Three-Phase)
The High-Speed Pin Router is a robust and heavy-duty solution engineered for fast, precise profile cutting and template replication on straight, curved, and irregular-shaped wooden components. Equipped with an ultra-fast spindle and perfectly aligned bottom guide pin, it ensures clean cuts and a smooth, professional finish on solid timber, plywood, MDF, and other composite panels.
Specification
Spindle Speed
Throat Depth
Max Spindle Stroke
Max Workpiece Thickness
Working Table Size
Table Lift Stroke
Table Tilting Capacity
Collet Diameters
Motor Power
Voltage Input
Net Weight
Overall Dimensions
350 kg – 440 kg (Cast iron frame)
Detail
Up to 18,000 RPM (or dual 9,000 / 18,000 RPM)
730 mm – 745 mm
65 mm
80 mm – 150 mm
805 mm × 600 mm
150 mm – 180 mm
0° to 45° (on select models)
6.3 mm (1/4") and 12.7 mm (1/2")
3.0 kW (4 HP) or 4.0 kW (5.5 HP)
220V (Single-Phase) or 380V/415V (Three-Phase)
350 kg – 440 kg (Cast iron frame)
1430 mm × 880 mm × 1700 mm
1430 mm × 880 mm × 1700 mm
Specification
Detail
1300 x 2500 x 300mm
Working Area
Spindle Speed
0-18000
25mm Hiwin Linear Square Guide Rails Taiwan
Guide Rail
Ac380 Volt, 50/60Hz, 3 Phase or SPH
Work Voltage
Easy Servo Hybrid
Drive & Motor
Working Table
Aluminium Profile Working Table T-slot
Spanner Collet, One Box Of Cutting
Tool Kit
 X, Y Axis: Helical Rack AND Pinion Z Axis: TBI Ball Screw
Transmission System
Spindle
Double Spindle 6kw (Air Cooled HQD Spindle)
DSP A11 Rich AUTO
Control System
Specification
Specification
Max. Distance of 2 horizontal boring position
2450 mm
Max. Width of work Piece
640 mm
Min. Distance of Vertical Drilling Group
128 mm
Maximum thickness of work piece
78 mm
Max. Depth of horizontal boring head
40 mm
Rotation Speed of boring spindles
2800rpm (50Hz)
Max. Depth of vertical boring head
70 mm
1.5kw × 2
Vertical boring power
Horizontal boring power
1.5kw
Working pressure
Machine dimension
1.5kw
0.6~0.8Mpa
3400 × 2500 × 1800 mm
2
No. of Cylinders
1000 mm
Max Opening
2500 × 1300 mm
Platen Size
50 Ton
Capacity
Specification
Detail
5 HP
Motor Power
Maximum Thickness of Work Place
Edge (Tape) Thickness
Glue Pot Capacity
Heating Element
Mechanism for Tape Cutting
Control of Tape Cutting
Glue can be applied to
Working speed per minute
Detail
10 mm to 50 mm
0.3 mm to 3 mm
3 Kg. Approx.
3 KW
Pneumatic
Micro Switch on Table / Foot Switch
Tape & Board
8 to 10 meters per minute
Specification
Machine dimensions (L×W×H)
Motor Power
Tape Coil Diameter
Air Pressure
1850 to 1150 × 1000 mm
1 H.P.
525 mm
8 to 10 meters per minute
Rated Voltage
Rated Power
Machine Dimensions
Net Weight
Edge Banding Speed
Edge Band Thickness
Glue Pot Capacity
Heating Time
Detail
220 V
825 W
500 × 300 × 270 mm
15 kg
0–14 m/min
0.5–2 mm
1000 ml
5–10 minutes
Specification
≤ 10 hours
Continuous Working Time
Spindle Speed
Throat Depth
Max Spindle Stroke
Max Workpiece Thickness
Working Table Size
Table Lift Stroke
Table Tilting Capacity
Collet Diameters
Detail
Up to 18,000 RPM (or dual 9,000 / 18,000 RPM)
730 mm – 745 mm
65 mm
80 mm – 150 mm
805 mm × 600 mm
150 mm – 180 mm
0° to 45° (on select models)
6.3 mm (1/4") and 12.7 mm (1/2")
Specification
3.0 kW (4 HP) or 4.0 kW (5.5 HP)
Motor Power
Voltage Input
Net Weight
Overall Dimensions
220V (Single-Phase) or 380V/415V (Three-Phase)
350 kg – 440 kg (Cast iron frame)
Dust Collector
Model no : WMDC
The heavy-duty Dust Collector is a robust and reliable solution engineered for fast, high-volume chip extraction and continuous waste collection across multiple woodworking machines. Equipped with a powerful high-torque motor and perfectly balanced impeller system, it ensures strong, consistent suction and a clean, hazard-free workshop environment on heavy timber, plywood, MDF, and other composite panels.
Specification
Motor Power
Airflow Capacity
Power Supply
Filtration Rating
Inlet Diameter
Collection Volume
Filter Bag Material
Portability
Detail
3 HP to 5 HP (2.2 kW to 3.7 kW)
2,300 to 3,200 m³/hr (1,300 to 1,800 CFM)
220V (1-Phase) or 415V (3-Phase)
Standard 5 microns (Upgradable to 1 micron)
100 mm to 125 mm (Multi-port configuration)
150 to 200+ Litres
Heavy-duty, non-woven polyester fabric
Heavy-duty caster wheels for mobile shop use
1430 mm × 880 mm × 1700 mm
Motor Power
Airflow Capacity
Power Supply
Filtration Rating
Inlet Diameter
Collection Volume
Filter Bag Material
Detail
3 HP to 5 HP (2.2 kW to 3.7 kW)
2,300 to 3,200 m³/hr (1,300 to 1,800 CFM)
220V (1-Phase) or 415V (3-Phase)
Standard 5 microns (Upgradable to 1 micron)
100 mm to 125 mm (Multi-port configuration)
150 to 200+ Litres
Heavy-duty, non-woven polyester fabric
Specification
Portability
Heavy-duty caster wheels for mobile shop use
Specification
Detail
1300 x 2500 x 300mm
Working Area
Spindle Speed
0-18000
25mm Hiwin Linear Square Guide Rails Taiwan
Guide Rail
Ac380 Volt, 50/60Hz, 3 Phase or SPH
Work Voltage
Easy Servo Hybrid
Drive & Motor
Working Table
Aluminium Profile Working Table T-slot
Spanner Collet, One Box Of Cutting
Tool Kit
 X, Y Axis: Helical Rack AND Pinion Z Axis: TBI Ball Screw
Transmission System
Spindle
Double Spindle 6kw (Air Cooled HQD Spindle)
DSP A11 Rich AUTO
Control System
Specification
Specification
Max. Distance of 2 horizontal boring position
2450 mm
Max. Width of work Piece
640 mm
Min. Distance of Vertical Drilling Group
128 mm
Maximum thickness of work piece
78 mm
Max. Depth of horizontal boring head
40 mm
Rotation Speed of boring spindles
2800rpm (50Hz)
Max. Depth of vertical boring head
70 mm
1.5kw × 2
Vertical boring power
Horizontal boring power
1.5kw
Working pressure
Machine dimension
1.5kw
0.6~0.8Mpa
3400 × 2500 × 1800 mm
2
No. of Cylinders
1000 mm
Max Opening
2500 × 1300 mm
Platen Size
50 Ton
Capacity
Specification
Detail
5 HP
Motor Power
Maximum Thickness of Work Place
Edge (Tape) Thickness
Glue Pot Capacity
Heating Element
Mechanism for Tape Cutting
Control of Tape Cutting
Glue can be applied to
Working speed per minute
Detail
10 mm to 50 mm
0.3 mm to 3 mm
3 Kg. Approx.
3 KW
Pneumatic
Micro Switch on Table / Foot Switch
Tape & Board
8 to 10 meters per minute
Specification
Machine dimensions (L×W×H)
Motor Power
Tape Coil Diameter
Air Pressure
1850 to 1150 × 1000 mm
1 H.P.
525 mm
8 to 10 meters per minute
Rated Voltage
Rated Power
Machine Dimensions
Net Weight
Edge Banding Speed
Edge Band Thickness
Glue Pot Capacity
Heating Time
Detail
220 V
825 W
500 × 300 × 270 mm
15 kg
0–14 m/min
0.5–2 mm
1000 ml
5–10 minutes
Specification
≤ 10 hours
Continuous Working Time
Spindle Speed
Throat Depth
Max Spindle Stroke
Max Workpiece Thickness
Working Table Size
Table Lift Stroke
Table Tilting Capacity
Collet Diameters
Detail
Up to 18,000 RPM (or dual 9,000 / 18,000 RPM)
730 mm – 745 mm
65 mm
80 mm – 150 mm
805 mm × 600 mm
150 mm – 180 mm
0° to 45° (on select models)
6.3 mm (1/4") and 12.7 mm (1/2")
Specification
3.0 kW (4 HP) or 4.0 kW (5.5 HP)
Motor Power
Voltage Input
Net Weight
Overall Dimensions
220V (Single-Phase) or 380V/415V (Three-Phase)
350 kg – 440 kg (Cast iron frame)
1430 mm × 880 mm × 1700 mm
Motor Power
Airflow Capacity
Power Supply
Filtration Rating
Inlet Diameter
Collection Volume
Filter Bag Material
Detail
3 HP to 5 HP (2.2 kW to 3.7 kW)
2,300 to 3,200 m³/hr (1,300 to 1,800 CFM)
220V (1-Phase) or 415V (3-Phase)
Standard 5 microns (Upgradable to 1 micron)
100 mm to 125 mm (Multi-port configuration)
150 to 200+ Litres
Heavy-duty, non-woven polyester fabric
Specification
Portability
Automatic Edge Banding
Model no : WAEB
A high-speed, fully automatic edge banding machine designed for precise, efficient, and professional edge finishing. It performs automatic plate feeding, edge banding, end cutting, polishing, and head & tail trimming for a clean and smooth finish, every time with precision, it helps improve productivity while delivering high-quality edge finishing for a wide range of woodworking and furniture applications.
Specification
Edge type
Voltage
Rated power
Rated air pressure
Suction
Belt power
Transmission power
Heating power
Polishing power
Trimming power
Conveyor belt
Feed plate
Heavy-duty caster wheels for mobile shop use
Sheet thickness
Strip thickness
Glue capacity
Overall size
Packing size
Weight
Detail
Straight line
220
4kw
0.4–0.6mpa
1200w
25w
120w
800w
180w × 2
800w × 2
0–14m/min
0–14m/min
10–50mm
0.5–2.5mm
2000ml
207 × 61 × 105 cm
186 × 115 × 68 cm
245kg
Edge type
Voltage
Rated power
Rated air pressure
Detail
Straight line
220
4kw
0.4–0.6mpa
Specification
Suction
Belt power
Transmission power
Heating power
1200w
25w
120w
800w
Polishing power
Trimming power
Conveyor belt
Feed plate
180w × 2
800w × 2
0–14m/min
0–14m/min
Sheet thickness
Strip thickness
10–50mm
0.5–2.5mm
Glue capacity
Overall size
Packing size
Weight
2000ml
207 × 61 × 105 cm
186 × 115 × 68 cm
245kg
